MPR example app

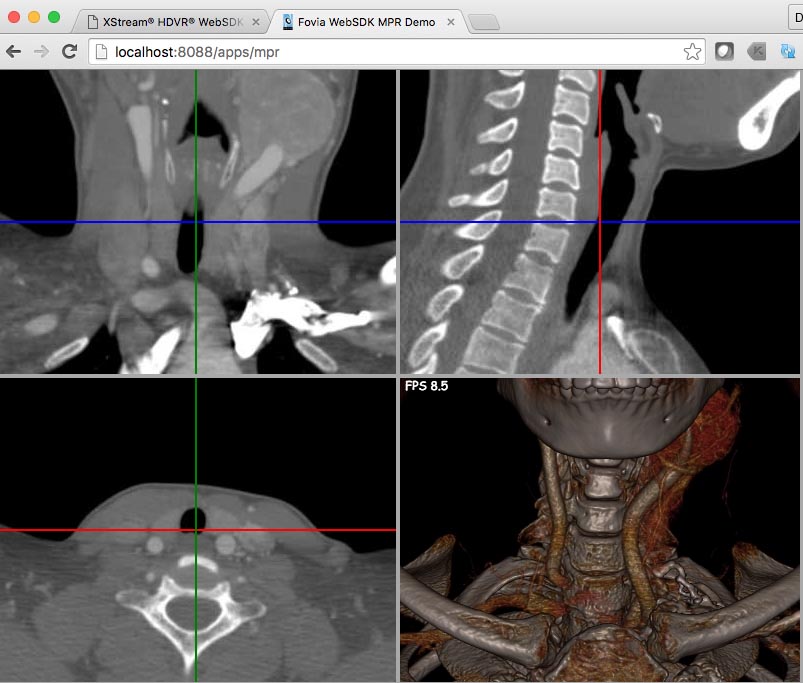

This example shows how to create a 2x2 layout, with a sagittal, axial, and coronal orthogonal views, along with the following:

  • use the HTMLDoubleBufferViewport3D for HTML viewport creation
  • render cross-reference lines that are orthogonal to each other using the onDrawCallback specified in Fovia.UI.HTMLViewport3D.init()
  • callbacks for linking view
  • create a FoviaViewport that supports repaint() and double buffering
  • add a window/level mouse adaptor
  • example how to create a render parameters structure (XML preset) for a 3D view
  • turn off FPS in viewport
  • respond to a resize window event
  • project a 3D point to 2D projection plane coordinates in parallel rendering mode
The concepts shown for drawing of cross-reference lines can be extended to drawing of any elements, including annotations on the canvas.

View the source /foviaserver/public/apps/mpr/mpr.js To run the example, click on the local link of http://localhost:8088/apps/mpr/
